Mustang II Parts Lookup

www.eatondetroitspring.com

MUSTANG II
Coil Springs

Traditional Industry Applications SMALL BLOCK BIG BLOCK

EATON
Part No Spring
Rate Free
Height EATON
Part No Spring
Rate Free
Height

33 - 34 Fords and 33 - 35 Chevys M25652 317 13 15/16 M24046 352 13 7/16

35 - 48 Fat Fendered Cars M24046 352 13 7/16 M21122 367 13 3/4

50's Cars and Pick-ups M21122 367 13 3/4 M23136 383 14 15/16

Very Heavy engines in 50's & 60's Pick-ups M23136 383 14 15/16 ◄ cut 1 coil on 454,460,& hemi

ORDER EATON
Part No. Spring
Rate* Free
Height Loaded Height at
1750 lbs 2000 lbs ORDER EATON
Part No. Spring
Rate* Free
Height Loaded Height at
1750 lbs 2000 lbs

M21089 279 13 3/4 10 5/8 10 1/8 M21122 367 13 3/4 11 3/8 11

M21091 279 13 3/16 10 1/16 9 9/16 M23114 383 15 1/8 12 13/16 12 1/2

M24246 308 14 1/8 11 5/16 10 7/8 M23136 383 14 15/16 12 5/8 12 5/16

M27886 309 14 3/4 11 7/8 11 1/2 M25442 383 14 11/16 12 7/16 12 1/8

M27890 309 14 7/16 11 5/8 11 3/16 M21493 384 13 11/16 11 7/16 11 1/8

M21520 315 13 5/8 10 7/8 10 1/2 M23812 386 12 5/8 10 5/16 10

M25652 317 13 15/16 11 1/8 10 3/4 M21086 414 15 12 7/8 12 9/16

M21706 321 11 1/4 8 9/16 8 1/8 M23196 415 15 3/16 13 1/16 12 3/4

M22610 324 13 3/8 10 11/16 10 5/16 M25514 415 15 3/8 13 1/4 13

M25416 344 11 15/16 9 7/16 9 1/16 M23150 417 15 13/16 13 3/4 13 7/16

M23908 351 12 3/4 10 1/4 9 7/8 M21880 461 15 1/8 13 3/16 12 15/16

M24046 352 13 7/16 10 15/16 10 5/8

M2ES6070 Coil isolator M2TN303 QA1 HYDRAULIC NON ADJUSTABLE

M2TD303 QA1 HYDRAULIC DOUBLE ADJUSTABLE M2TS303 QA1 HYDRAULIC SINGLE ADJUSTABLE

Spring heights at the shown weights are for the pair and is only for reference. *Rate is the amount of weight needed to deflect a spring 1 inch

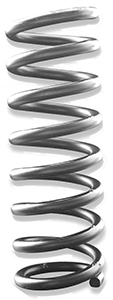

With a selection of 23 different
Mustang II front coil springs,
you can dial in the ride height
and ride quality that you want.

Should the 1st set of springs
not do the job, just let us know
what needs to be changed,
ride height or ride quality,
and we will exchange them for
another set as long as the 1st set
of springs are in resalable condition
and you pay all shipping cost plus
a 15% restocking charge.

$ 195.00/pair

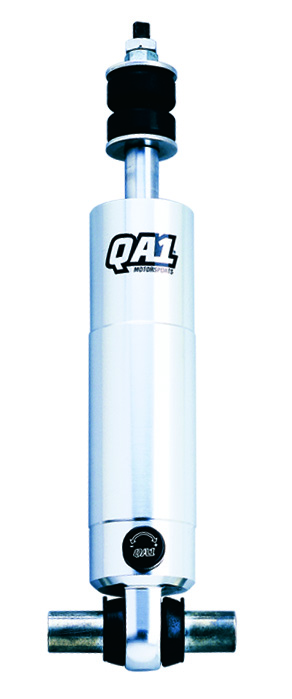

Complete The Best Rod Ride
with the Best Shock Available
QA1
Available in three different versions:
Non-Adjustable
TN303 $ 180.00 each

Single Adjustable
TS303 $ 210.00 each

Double Adjustable
TD303 $ 315.00 each

EATON Detroit Spring, Inc. 1555 Michigan Ave. Detroit, MI. 48216 Ph: (313) 963-3839 Fax: (313) 963-7047
Web: www.eatondetroitspring.com EMail: sales@eatonsprings.com

Dealer ID: Password:

Traditional Industry Applications						SMALL BLOCK			BIG BLOCK
Traditional Industry Applications						EATON Part No	Spring Rate	Free Height	EATON Part No	Spring Rate	Free Height
33 - 34 Fords and 33 - 35 Chevys						M25652	317	13 15/16	M24046	352	13 7/16
35 - 48 Fat Fendered Cars						M24046	352	13 7/16	M21122	367	13 3/4
50's Cars and Pick-ups						M21122	367	13 3/4	M23136	383	14 15/16
Very Heavy engines in 50's & 60's Pick-ups						M23136	383	14 15/16	◄ cut 1 coil on 454,460,& hemi

ORDER	EATON Part No.	Spring Rate*	Free Height	Loaded Height at 1750 lbs 2000 lbs		ORDER	EATON Part No.	Spring Rate*	Free Height	Loaded Height at 1750 lbs 2000 lbs
	M21089	279	13 3/4	10 5/8	10 1/8		M21122	367	13 3/4	11 3/8	11
	M21091	279	13 3/16	10 1/16	9 9/16		M23114	383	15 1/8	12 13/16	12 1/2
	M24246	308	14 1/8	11 5/16	10 7/8		M23136	383	14 15/16	12 5/8	12 5/16
	M27886	309	14 3/4	11 7/8	11 1/2		M25442	383	14 11/16	12 7/16	12 1/8
	M27890	309	14 7/16	11 5/8	11 3/16		M21493	384	13 11/16	11 7/16	11 1/8
	M21520	315	13 5/8	10 7/8	10 1/2		M23812	386	12 5/8	10 5/16	10
	M25652	317	13 15/16	11 1/8	10 3/4		M21086	414	15	12 7/8	12 9/16
	M21706	321	11 1/4	8 9/16	8 1/8		M23196	415	15 3/16	13 1/16	12 3/4
	M22610	324	13 3/8	10 11/16	10 5/16		M25514	415	15 3/8	13 1/4	13
	M25416	344	11 15/16	9 7/16	9 1/16		M23150	417	15 13/16	13 3/4	13 7/16
	M23908	351	12 3/4	10 1/4	9 7/8		M21880	461	15 1/8	13 3/16	12 15/16
	M24046	352	13 7/16	10 15/16	10 5/8

	M2ES6070	Coil isolator					M2TN303	QA1 HYDRAULIC NON ADJUSTABLE
	M2TD303	QA1 HYDRAULIC DOUBLE ADJUSTABLE					M2TS303	QA1 HYDRAULIC SINGLE ADJUSTABLE
Spring heights at the shown weights are for the pair and is only for reference.						*Rate is the amount of weight needed to deflect a spring 1 inch
With a selection of 23 different Mustang II front coil springs, you can dial in the ride height and ride quality that you want. Should the 1st set of springs not do the job, just let us know what needs to be changed, ride height or ride quality, and we will exchange them for another set as long as the 1st set of springs are in resalable condition and you pay all shipping cost plus a 15% restocking charge. $ 195.00/pair						Complete The Best Rod Ride with the Best Shock Available QA1 Available in three different versions: Non-Adjustable TN303 $ 180.00 each Single Adjustable TS303 $ 210.00 each Double Adjustable TD303 $ 315.00 each
EATON Detroit Spring, Inc. 1555 Michigan Ave. Detroit, MI. 48216 Ph: (313) 963-3839 Fax: (313) 963-7047 Web: www.eatondetroitspring.com EMail: sales@eatonsprings.com
